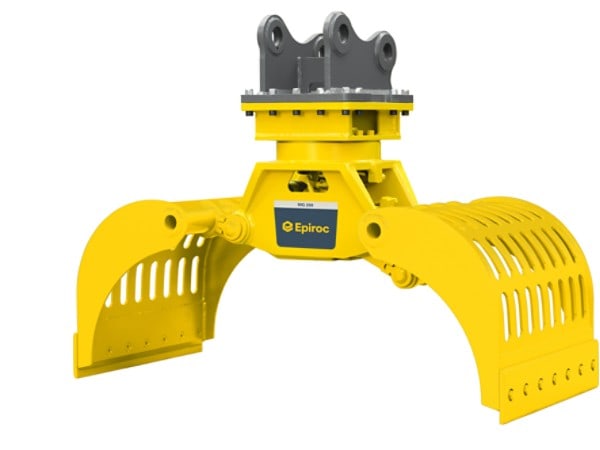

Excavator grapple for carriers of 1,2 – 3 tons (2,646-6,614 lb), used in sorting and loading applications
Excavator grapple for carriers of 1,2 – 3 tons (2,646-6,614 lb), used in sorting and loading applications
| Carrier weight class ¹ | 1,2 t – 3 t |
| Service weight (rotation) ² | 180 kg |
| Product weight (rotation) | 160 kg |
| Jaw opening, max | 841 mm |
| Grapple width | 450 mm |
| Max. closing force | 1,5 t |
| Loading volumen | 0,05 m³ |
| Oil flow, open / close | 25 l/min |
| Operating pressure | 300 bar |
| Oil flow, rotation | 5 l/min – 10 l/min |
| Max operating pressure, rotation | 170 bar |
A: 651mm
B: 841mm
C: 450mm
D: –
F1: 1.5t
