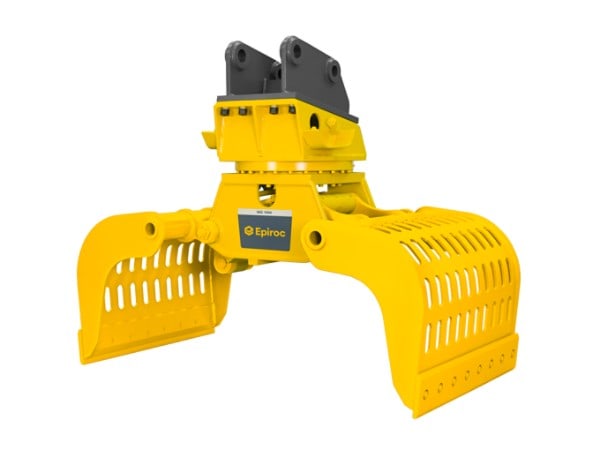

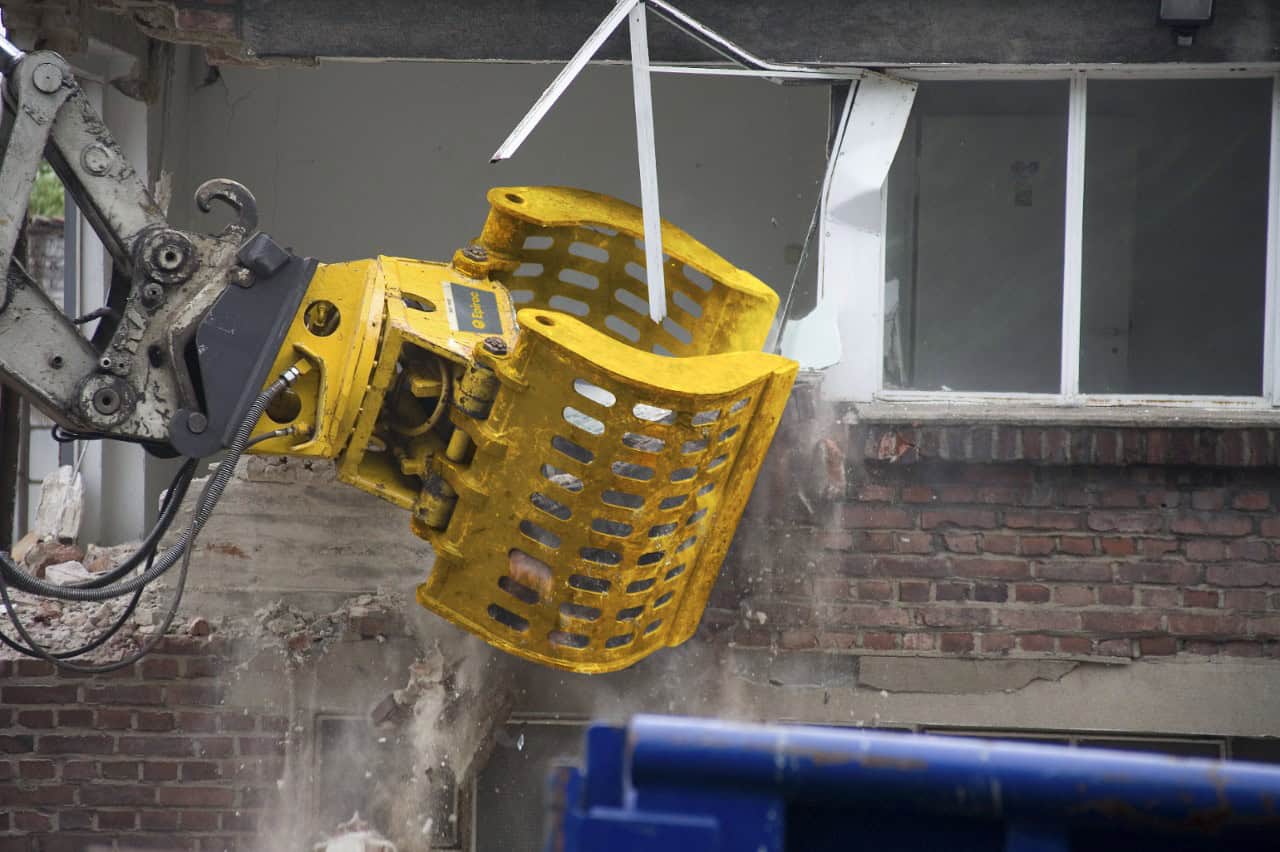

Excavator grapple for carriers of 16 – 24 tons (35,274-52,910 lb), used in sorting and loading applications
Excavator grapple for carriers of 16 – 24 tons (35,274-52,910 lb), used in sorting and loading applications
| Carrier weight class ¹ | 16 t – 24 t |
| Service weight (rotation) ² | 1 710 kg |
| Service weight (non rotation) ² | 1 430 kg |
| Product weight (rotation) | 1 526 kg |
| Product weight (non rotation) | 1 336 kg |
| Jaw opening, max | 2 014 mm |
| Grapple width | 1 030 mm |
| Max. closing force | 6,8 t |
| Loading volumen | 0,73 m³ |
| Oil flow, open / close (range) | 120 l/min – 170 l/min |
| Operating pressure | 350 bar |
| Oil flow, rotation | 30 l/min – 35 l/min |
| Max operating pressure, rotation | 170 bar |
A: 1,478mm
B: 2,014mm
C: 1,030mm
D: 1,130mm
F1: 6.8t
