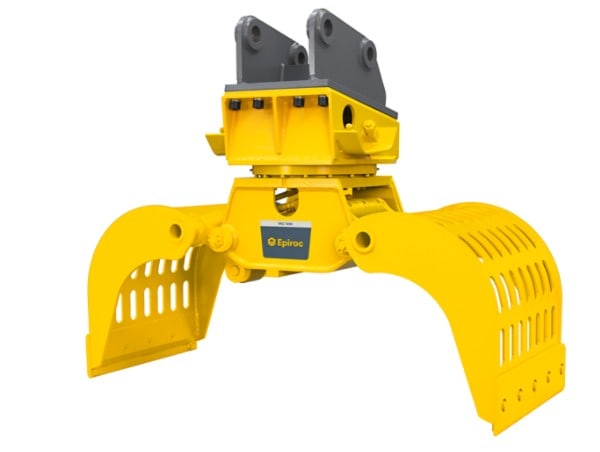

Excavator grapple for carriers of 12 – 20 tons (26,455-44,092 lb), used in sorting and loading applications
Excavator grapple for carriers of 12 – 20 tons (26,455-44,092 lb), used in sorting and loading applications
| Carrier weight class ¹ | 12 t – 20 t |
| Service weight (rotation) ² | 1 200 kg |
| Service weight (non rotation) ² | 1 090 kg |
| Product weight (rotation) | 1 016 kg |
| Product weight (non rotation) | 906 kg |
| Jaw opening, max | 1 900 mm |
| Grapple width | 810 mm |
| Max. closing force | 4,6 t |
| Loading volumen | 0,49 m³ |
| Oil flow, open / close (range) | 85 l/min – 120 l/min |
| Operating pressure | 350 bar |
| Oil flow, rotation | 20 l/min – 25 l/min |
| Max operating pressure, rotation | 170 bar |
A: 1,275mm
B: 1,900mm
C: 810mm
D: 991mm
F1: 4.6t
