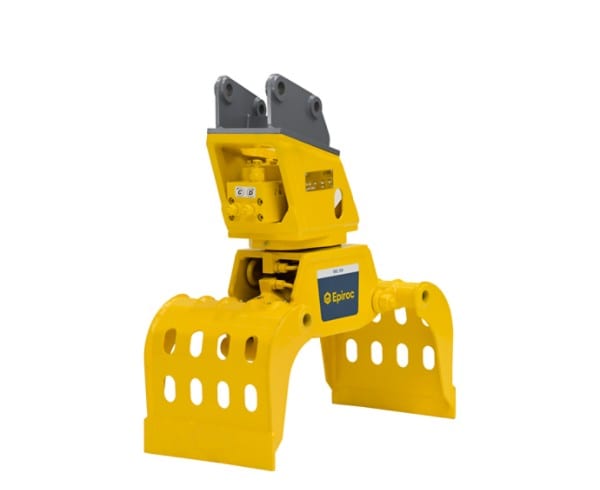

Excavator grapple for carriers of 0.7 – 1.2 tons (1,543-2,646 lb), used in sorting and loading applications
Excavator grapple for carriers of 0.7 – 1.2 tons (1,543-2,646 lb), used in sorting and loading applications
| Carrier weight class ¹ | 0,7 t – 1,2 t |
| Service weight (rotation) ² | 85 kg |
| Product weight (rotation) | 70 kg |
| Jaw opening, max | 580 mm |
| Grapple width | 312 mm |
| Max. closing force | 0,6 t |
| Loading volumen | 0,02 m³ |
| Oil flow, open / close | 15 l/min |
| Operating pressure | 300 bar |
| Oil flow, rotation | 3 l/min – 5 l/min |
| Max operating pressure, rotation | 170 bar |
A: 600mm
B: 580mm
C: 312mm
D: –
F1: 0.6t
