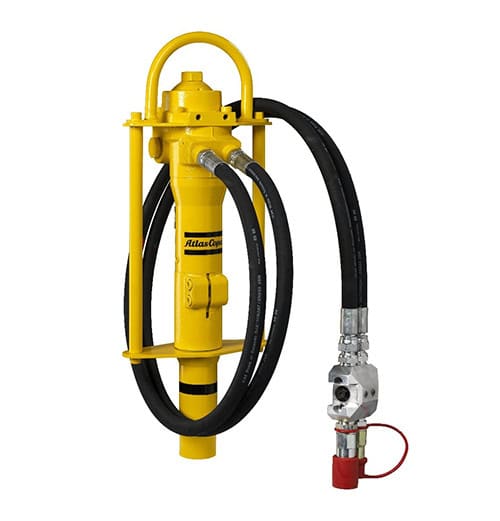

Well balanced and easy to use, these drivers come with a remote control operating valve. The ground rod drivers accommodate a wide range of driving requirements for earth connectors to depths of 2-3 meters (7-10 ft). When operated with an optional hose-mounted remote controlled valve, the drivers can be run with both open- or closed-center systems.
Well balanced and easy to use, these drivers come with a remote control operating valve. The ground rod drivers accommodate a wide range of driving requirements for earth connectors to depths of 2-3 meters (7-10 ft). When operated with an optional hose-mounted remote controlled valve, the drivers can be run with both open- or closed-center systems.
Weight, incl. hoses: 23kg
Oil flow: 23-30 l/min
Working pressure: 105-125 bar
Impact rate at 30 l/min: 1600 blows/min
Hydraulic ports: ½” BSP
Bushing diameter: 25mm
Vibration level 3 axes (ISO 28927-10)*, 20 lpm: 17.4 m/s²
Sound power level guaranteed, Lw (2000/14/EC)*: 110 dB(A)
Sound pressure level (ISO 11203)** Lp, r=1m: 99 dB(A)
EHTMA class: C/D
Part number: 1801 3940 00
